Abstract : The propeller is one of the most important parts in the aerospace model and is a key component of the aircraft model's power. Even with a good engine, if there is no suitable propeller to drive, the performance of the aircraft will be greatly reduced. This article provides a method for quickly drawing a propeller using CAXA entity design software. The specific parameters are for reference only.
Abstract: The propeller is in the model airplane one of most important components, is the model ship airplane obtains the power the key component. Even if has a good engine, if does not have the appropriate propeller to lead, the airplane performance also can sell At a discount greatly. This article provides one kind for everybody to use the CAXA entity design software to draw up the propeller fast the method, the concrete parameter only supplies the reference.
At present, aircraft model propellers are generally obtained through purchase or hand-made; the two methods are insufficient. The purchased propellers are difficult to match with the newly designed aircraft model for optimum performance. Hand-polished propellers are difficult to control with precision and balance; they often require great effort, rich experience, constant failure and trial to get the best results.
If you can design your own propeller, you can accurately and quickly perform 3D modeling. Then, combined with CNC machining or rapid prototyping, the propeller can be processed to solve the above two problems and obtain the most ideal and precisely balanced propeller.
First, we select the leaf curve.
Refer to the figure below, where “CLACKYâ€, “NACA2412†and “NACA23012†are lift blades, generally used for aircraft fixed wings; “NACA0009†and “NACA0012†are upper and lower symmetrical leaf types, we choose the fuller “NACA0012†.
See "NACA 0012.txt" for the specific parameters of the "NACA0012" leaf type.

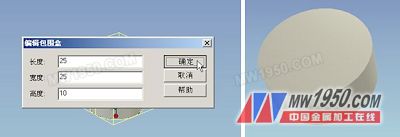

1. Draw a cylinder with a diameter of 25 and a height of 10.

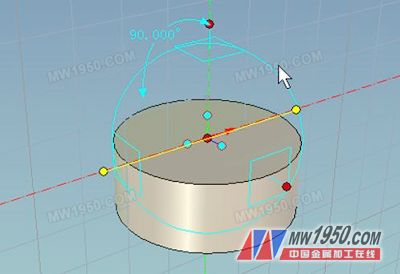

2. Sketch the center point of the cylinder end face and activate the 3D ball to rotate the sketch 90 degrees to coincide with the axis.

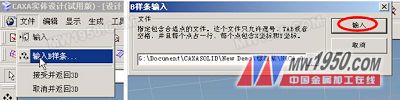

3. In the sketch state, click “File†- “Enter B Splineâ€, browse to read “NACA 0012.txtâ€, and click “Enterâ€.
Successfully entered B-spline.

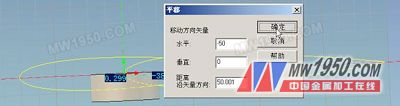

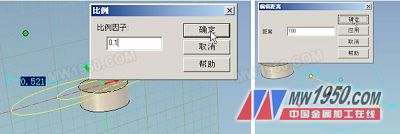

4. The current leaf length is 100. In the sketch, move 50 to the middle; zoom out 10 times (scale factor 0.1).
Complete the sketch and pan 100 outward.

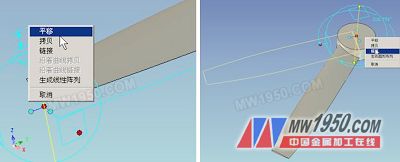

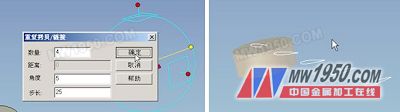

5. Click the outer control handle of the vertical sketch direction as the rotation axis, and right-click the “copy†of the 3D ball to set the number 4, angle 5, and step size 25. A cross section with 5 axes of intersection angle difference of 5 degrees was obtained.

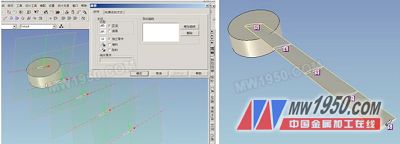

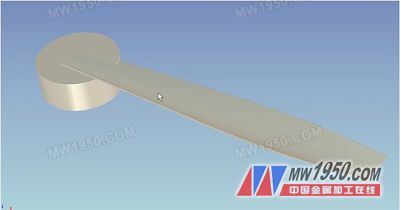

6. Pick up the 5 sections in turn, and select “Stakeout†in the right-click menu to generate the propeller prototype.

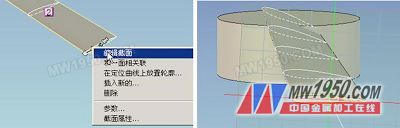

7. After molding, continue to modify or adjust each section. Click on the section number 1, and on the section, right-click on the menu "Edit Section".

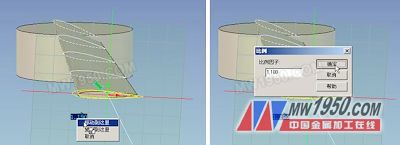

Frame the outline and activate the 3D ball with a rotation angle of 3.
Section 1 is magnified 1.1 times
8. Click on “Next Section†and adjust the scale in turn.
The profile of section 2 is enlarged by 1.6 times; section 3 is enlarged by 1.7 times; section 4 is enlarged by 1.6 times; section 5 is enlarged by 1.5 times;
9. The whole blade is translated downward by 5, and Boolean operation is performed with the central cylinder; the rotation link is 180 degrees, and the cylindrical end face and the root transition are 1.
Dig out the center mounting hole with a diameter of 10.

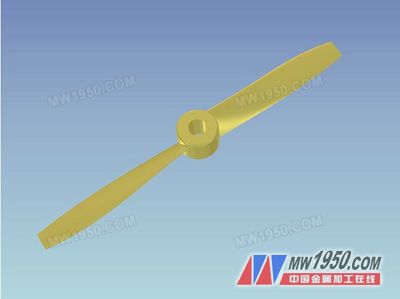

At this point, the RC propeller completes three-dimensional modeling. In the process of modeling, in addition to calling the spline curve required for the leaf shape text input sketch; there is no need to draw other space curves, space surfaces. The process is simple, intuitive and fast, and is suitable for any level of drawing.
