In daily life, with the continuous increase of electrical appliances, sockets have become an indispensable tool in home life. When installing a socket, it is usually installed on the wall of the home. This is mainly to protect the personal safety of the family. How to connect the socket ? What is the method of wiring? So next, Xiao Bian came to introduce you to several kinds of switch socket connection method, the following together to learn it!
How to connect a socket : Single control single open switch connection method
The single-control single-switching socket configuration is very simple, and generally can be directly connected during the decoration process. Simply connect the red wire to the L terminal on the back of the socket, and then use the blue wire to connect to the L1 terminal, so that the single-control, single-switch connection is complete.
How to connect socket two: single open five-hole socket wiring method
1. Switch socket installation
When we install the switch socket, it is best to choose after the carpenter and painter are finished. In this way, it is only necessary to remove dust and magazines from the switch socket and connect them properly so that the circuit can operate normally.
2. Power line processing
First leave a small section of wire in the switch socket box for use during future maintenance. Then cut the wire core. Be careful not to break the wire core. Then wire the wire in the clockwise direction on the corresponding terminal and then The indenter is tightened, taking care not to expose the core.
3. Line connection

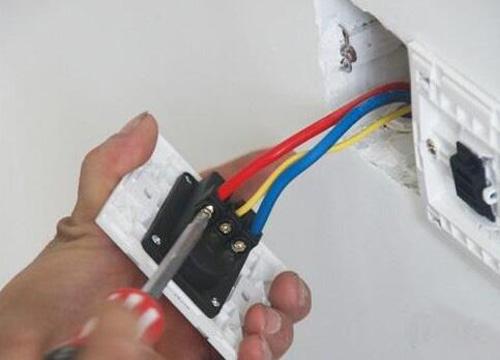

When connecting the line, connect the red wire (Fire wire) and blue wire (zero wire) to the terminals L and N respectively. The yellow-green two-color wire connects to the outlet terminal N, and then use a broken connection to connect the terminal L to the terminal. Switch the terminal block, and then connect it to the switch post L with the other cable from the bulb.
4. Switch socket fixed
During operation, the wire left at the bottom of the box is passed through the plastic outlet hole, and then the plastic table is closely attached to the wall. Finally, the screw is used to fix it on the bottom box. After the fixing is completed, the switch socket hole in each position will be opened. Wear it out and press the wire.
5. Fixed with switch socket panel
Finally, just close the switch socket on the plastic platform, fix the orientation, fix it with screws, and close the panel.
Socket how to connect three: single-open three-hole socket wiring method
The single-open three-hole socket connection method is similar to the single-open five-hole connection, but they also have certain differences. Their difference is mainly that the two fire wire terminals and the zero wire terminal of the socket are short-circuited within the single open five-hole. We don't need our hands to do it. In addition, when the wiring is not very high, the building does not have a yellow-green color protection cable, so we don't need to connect the terminal E.
The article concludes: The above is related to how to connect the socket and the connection method of various switch sockets. We hope to let everyone know how to connect the switch socket, so that everyone knows how to install the socket, so that everyone can solve the simple socket problem by themselves.
